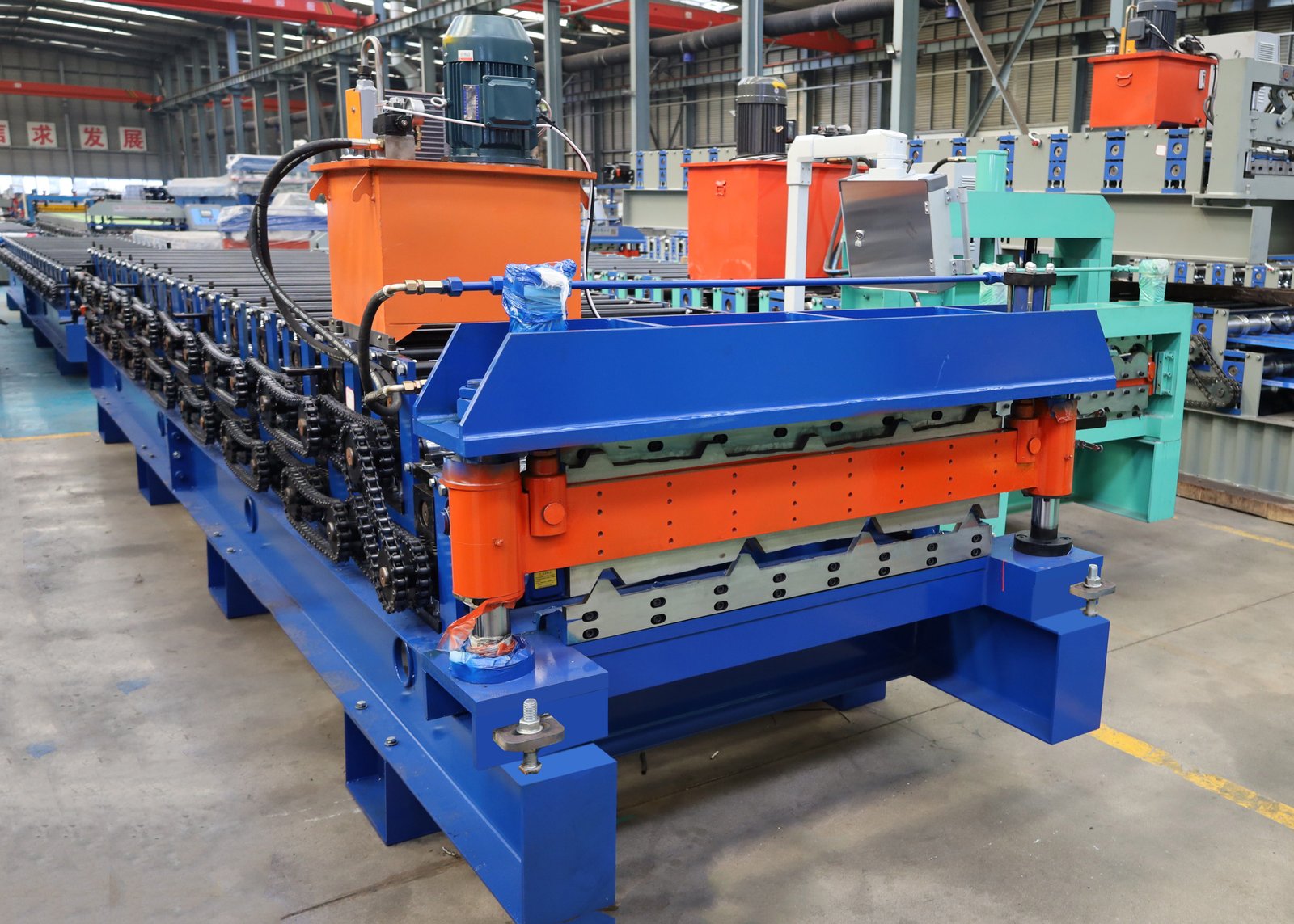

Double Layer Roof Sheet Roll Forming Machine

Design Idea：
Stable Transmission: Double chain and gear drive,keynote rollers design.

Product Diversity:.C8 and C25 metal roofing sheet machine for Russian is designed to make the metal roofing sheet in batch fully automatically.

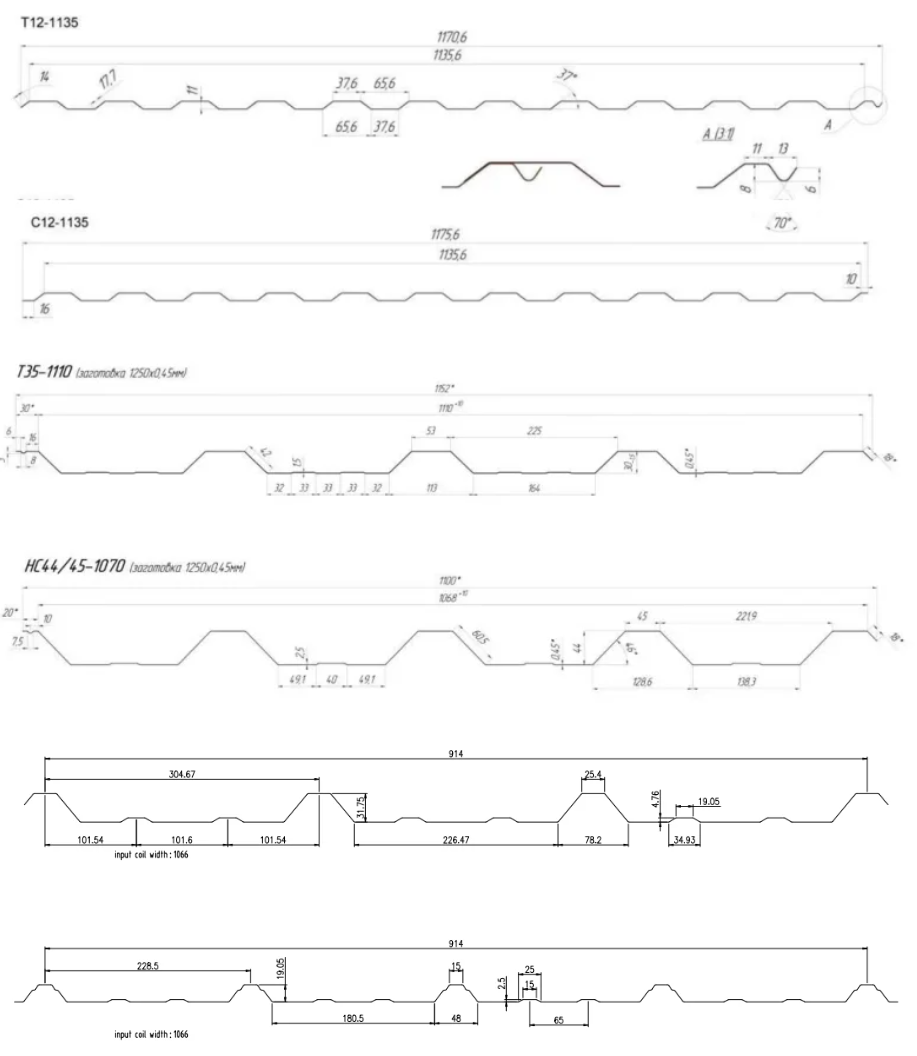

Profile drawing for reference:

Roofing sheet has many different shapes,usually different countries have its own popular design ,we can customize the machine as customers’ demand.

Processing Flow

Uncoiling → Feeding material into machine →Roll forming → Auto cutting →Products receiving table

R Panel Roll Forming Machine Hot Sale To America
Raw Material	PPGI,PPGL
Raw Material	Material Thickness:24/26 Gauge （0.4-0.6 Mm)
Machine Frame	350mm H Beam Structure, With 18mm Welded Steel Middle Support Plate.
Material Of Rollers	High grade 45# forged steel,Chromed treatment
Forming Stations	Up layer :16 rows,lower layer:17 rows
Diameter Of Shafts	Φ80mm Solid
Material Of Shafts	High Grade 45#,With Heat Treatment
Forming Speed	15 M/Min
Voltage	380v/50hz/3p (As Requested)
Transmission Way	By 1 Inch Chain (Double Chains)
Main Motor	5.5 KW
Cutting Blade Material	Gcr12 quenched treatment
Cutting Type	hydraulic post cutting
Driving Method	By pillar type Cylinder

Previous: No time

Next: No time

Processing Flow

Uncoiling → Feeding material into machine →Roll forming → Auto cutting →Products receiving table

R Panel Roll Forming Machine Hot Sale To America
Raw Material	PPGI,PPGL
Raw Material	Material Thickness:24/26 Gauge （0.4-0.6 Mm)
Machine Frame	350mm H Beam Structure, With 18mm Welded Steel Middle Support Plate.
Material Of Rollers	High grade 45# forged steel,Chromed treatment
Forming Stations	Up layer :16 rows,lower layer:17 rows
Diameter Of Shafts	Φ80mm Solid
Material Of Shafts	High Grade 45#,With Heat Treatment
Forming Speed	15 M/Min
Voltage	380v/50hz/3p (As Requested)
Transmission Way	By 1 Inch Chain (Double Chains)
Main Motor	5.5 KW
Cutting Blade Material	Gcr12 quenched treatment
Cutting Type	hydraulic post cutting
Driving Method	By pillar type Cylinder
