New Product Launch Galvanized Steel Roofing Sheet Press Machine Glazed Tile Making Machine

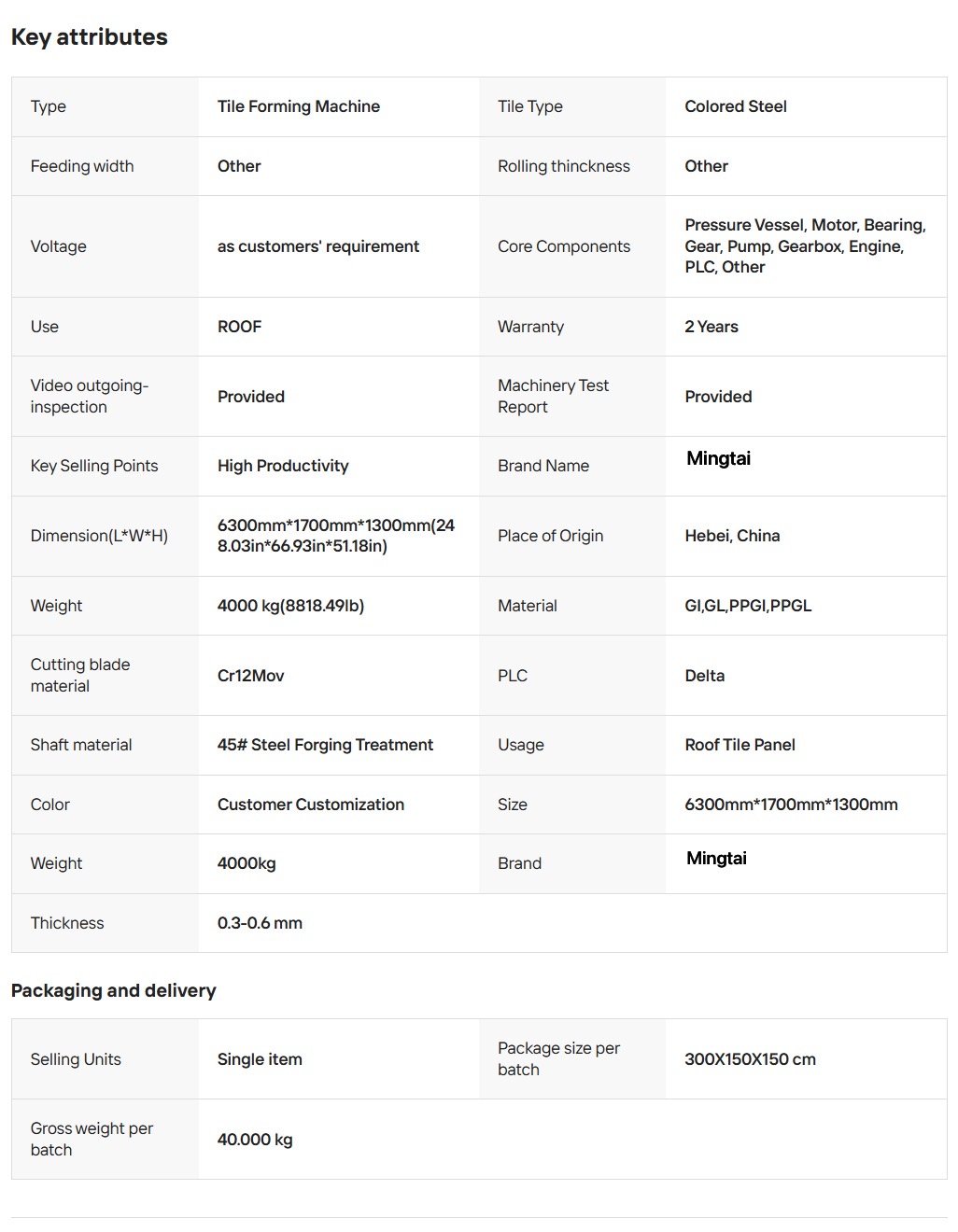

Key attributesTypeTile Forming MachineTile TypeColored SteelFeeding widthOtherRo


Product Detail

PRODUCT SPECIFICATIONS

ABOUT US

Product Tags

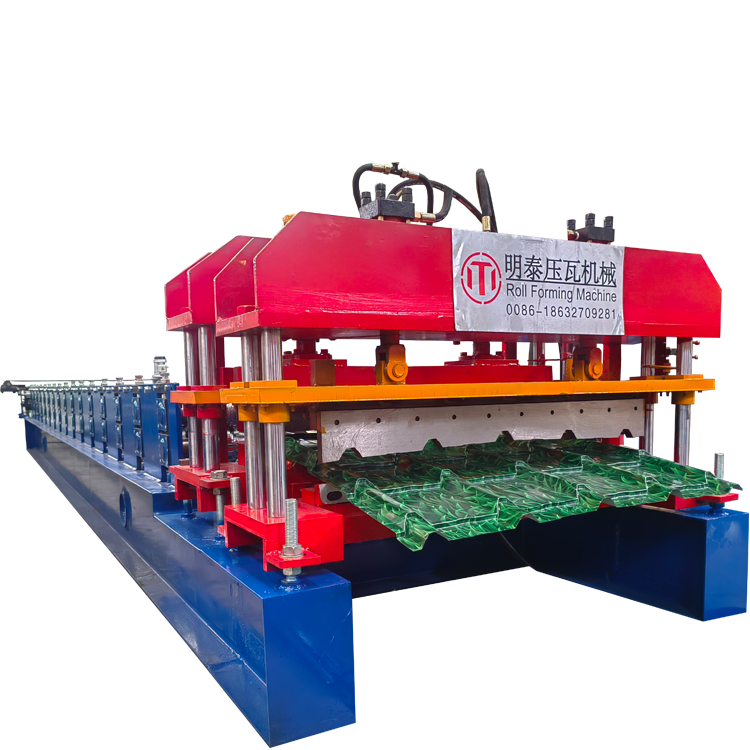

  • Previous: High-quality roofing tile machine manufacturer factory sells 840mm
  • Next: No time

  • Raw material
    material spec
    GI,GL,PPGI,PPGL
    Thickness of coil sheet
    0.3-0.6 mm

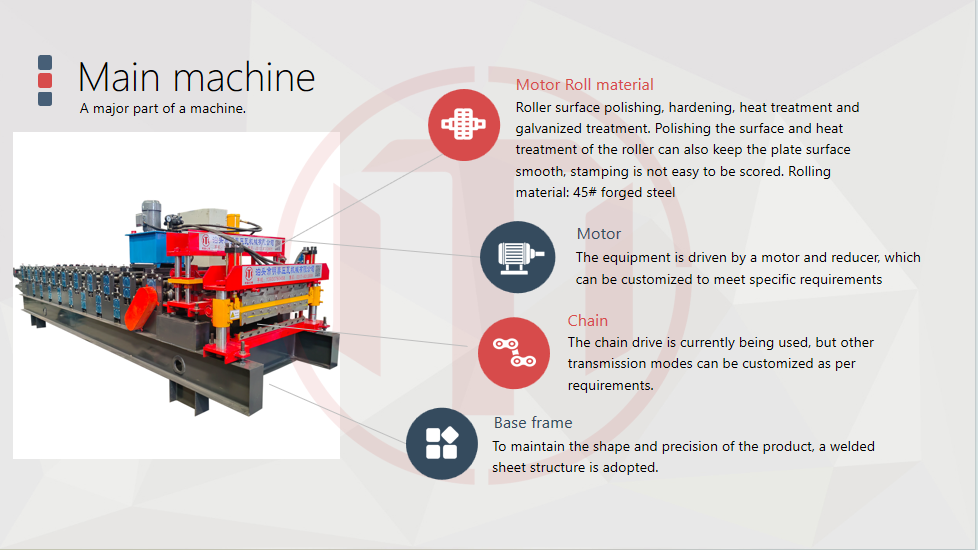

    Machine details

    Roller material
    The forming roller is made of 45# steel, which is hard chromium plated after carburizing. Carburizing treatment can increase the
    hardness and wear resistance of the roller, and increase its performance and service life. The rollers are highly precision
    ground, polished and hard chromium plated. Ensure the smoothness of the chamfer, reduce friction between the plate and the roller,
    and reduce wear. Will not scratch the painted surface of the steel coil.
    Shaft material
    Shafts of forming adopt 45# steel,after balance correction,are grinded,polished with high precision.
    Stainless steel dust shield is mounted on the outside of the bearings.
    Diameter of shaft
    70mm
    Main frame
    350 H steel
    Forming steps
    13 rows
    Productivity
    4-5m/min
    Middle panel
    14mm
    Chain
    1 inch
    Hydraulic station power
    5.5 KW
    Controlling system
    famous PLC computer control
    Material of cutting table
    Cr12Mov mould steel with quenched treatment
    Appearance size
    6300mm*1700mm*1300mm
    Hydraulic oil
    46# hydraulic oil
    Voltage
    380V 50Hz 3 Phase or as your requirements
    Hydraulic oil
    46# hydraulic oil
    Voltage
    380V 50Hz 3Phase or as your requirements
