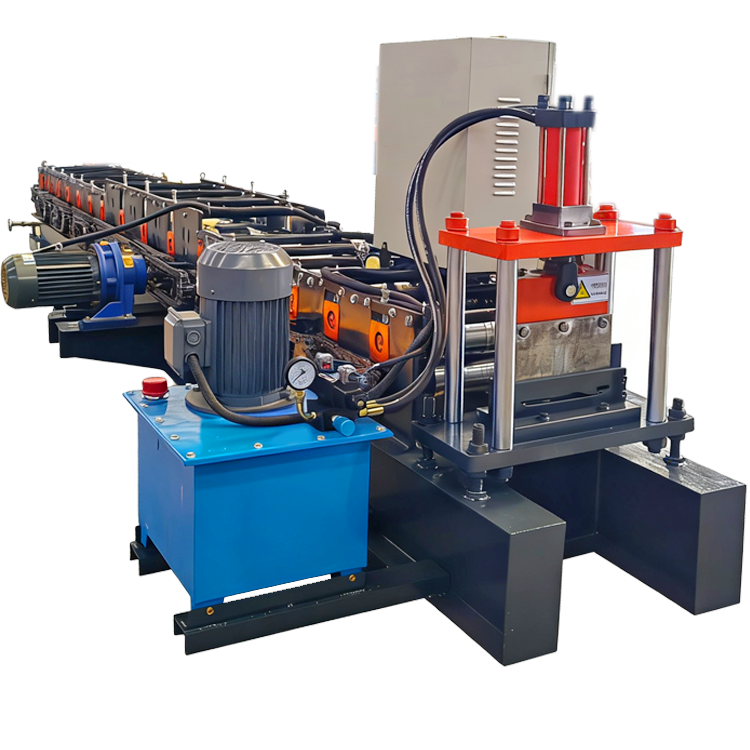

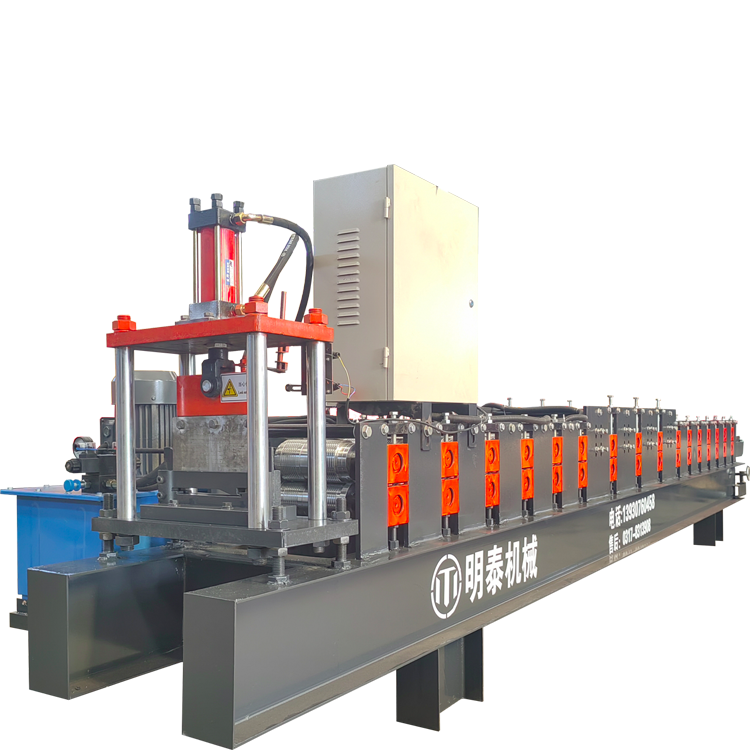

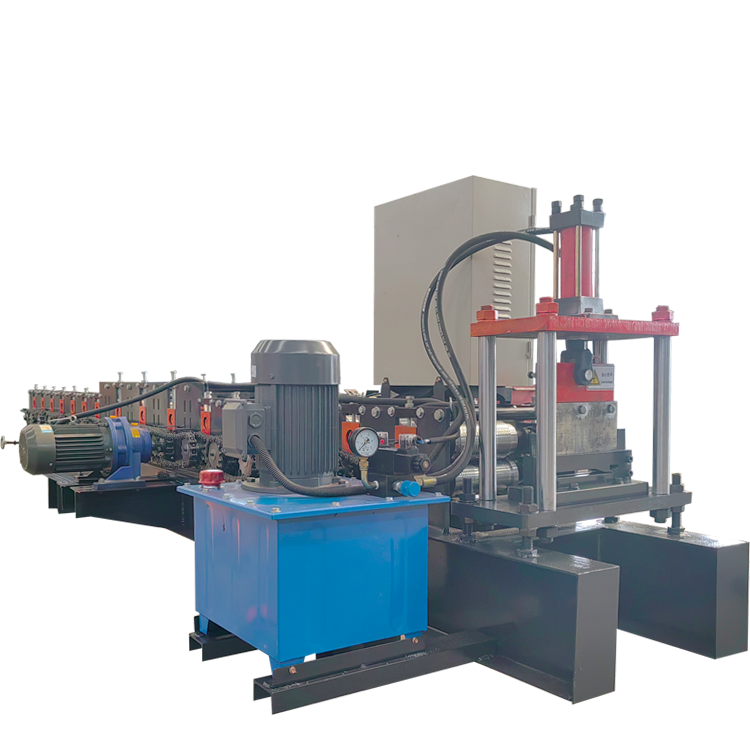

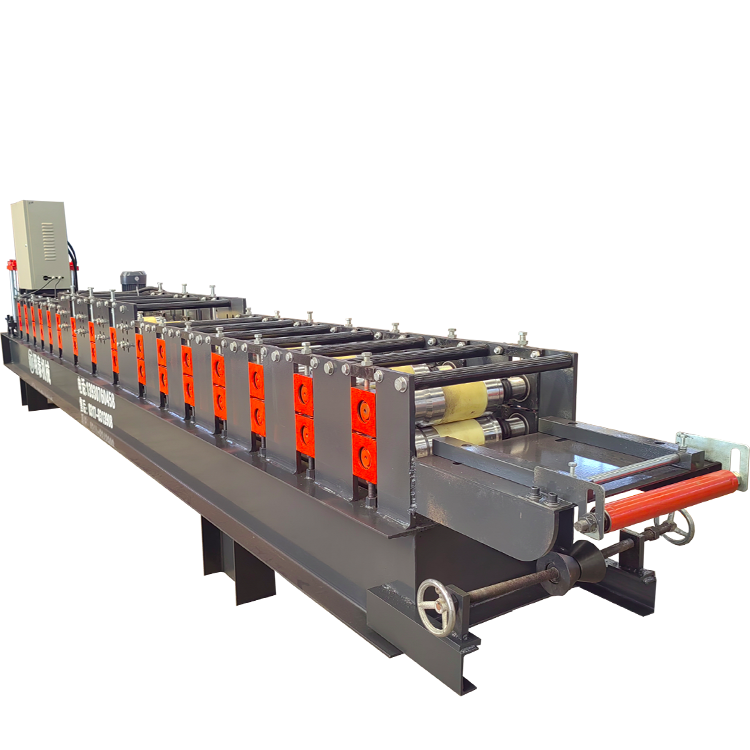

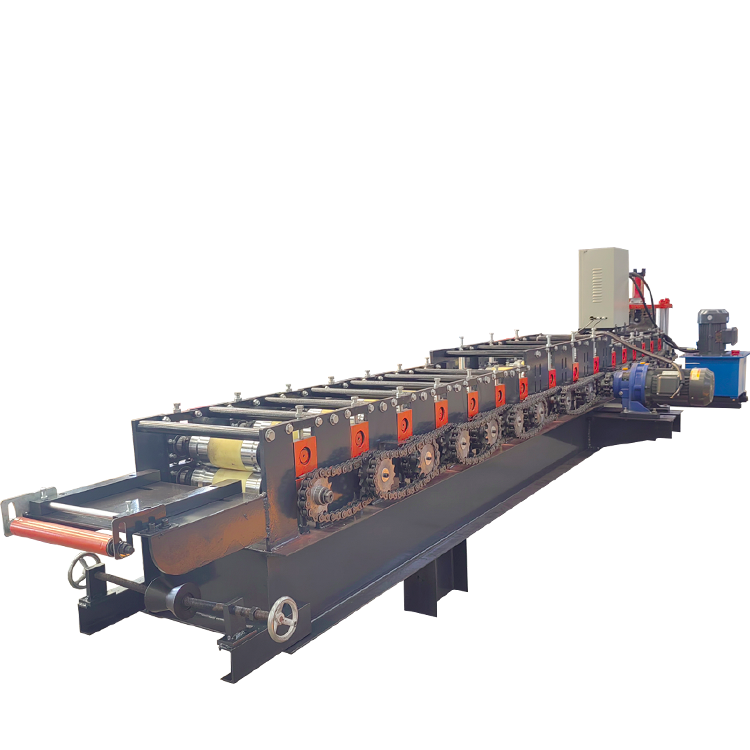

Automatic Ceiling Wall Panel Roll Forming Machine
Type | Tile forming machine | Tile type | Colored steel |
Feeding width | 800m（customized） | Thickness | 0.3-0.8mm |
Voltage | 240V,380V,440V | Core Components | Engine,Gearbox,Pump,Gear,Bearing,Motor |
Use | Roofing | Warranty | 1 year |
Key selling points | High Productivity | Brand Name | Mingtai |
Product of origin | Botou,Hebei | ||
Wight | 3000kgs | ||
Item | Specification |
Raw Material | PPGI，PPGL,Aluminium sheet or as clients requirements |
Material Thickness | 0.3-0.8mm or as clients requirements |
Decoiler | Manual decoiler for free, also we have Hydraulic decoiler instead |
Roller station | 12-18 rows(depend on client's drawing) |
Diameter of shaft | 70mm,75mm,80mm solid shaft |
Material of rollers | 45# steel, with chromed treatment , make the surface more smoothly, improve the hardness and prevent abrasion,anti Corrosion. With |
Machine frame | 350# H steel |
Transmission | Double Chain |
Dimension(L*W*H) | 4x0.8x0.8m |
Weight | About 3. 0 T |
Cutter material | Cr12 with quenched treatment |
Main Power | 5.5KW |
Voltage | 380V 50Hz 3Phase or as clients requirements |
Forming Speed | 16-25m/min |
